IC617仿真波形为何是虚线显示？

野生救世主

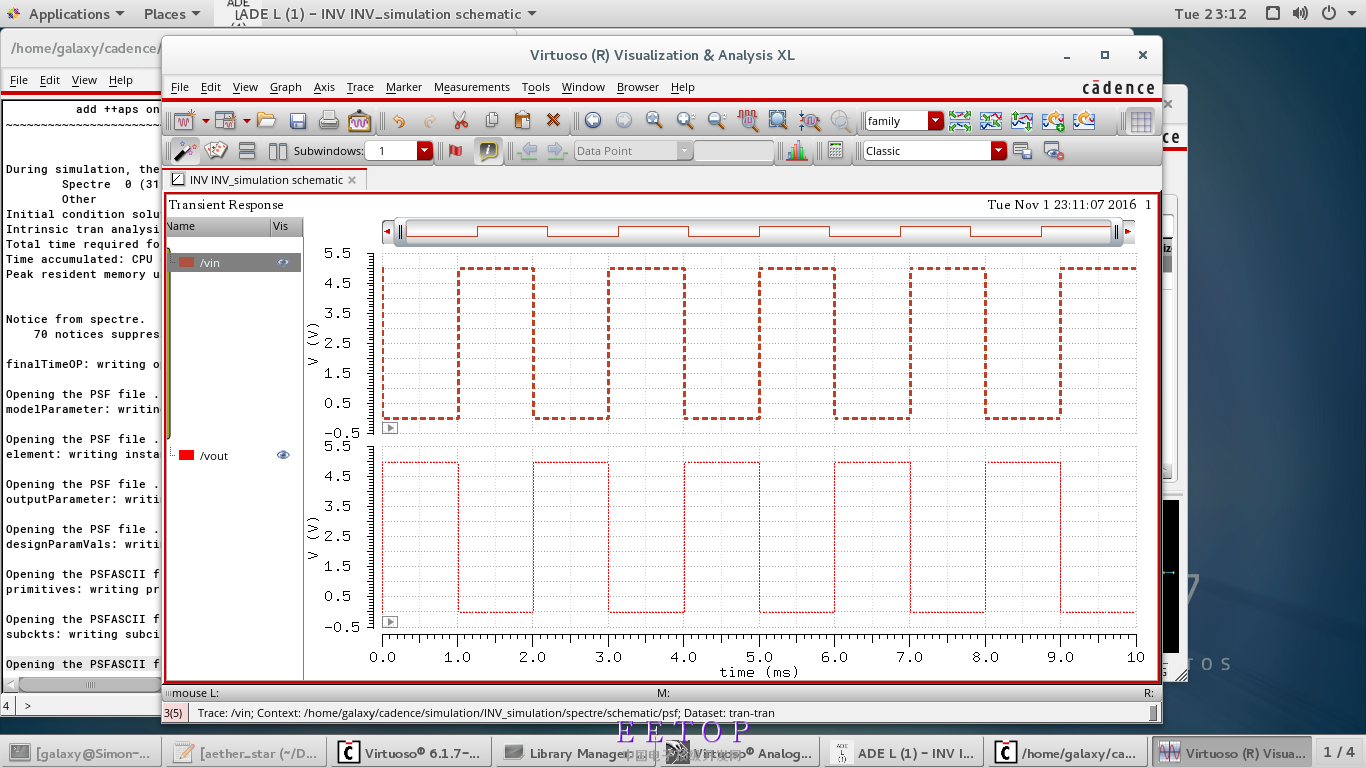

刚刚安装好IC617，画了个反向器准备测试一下软件，可是仿真后发现仿真波形是虚线，IC617都这样显示波形的吗？如下图！！！

野生救世主

求解析！！！

野生救世主

虚线看起来怪怪的，不习惯。

野生救世主

最后还是自己解决了，点中波形图，右击，选择stly,再选择需要的画图方式就行

nvb_dthy

thanks

一名IC初学者

难道每次都要改吗？

xiaowenrun

对啊，每次都改吗？

liumingming

http://bbs.eetop.cn/thread-896103-1-1.html 这里有解决方法
1. CIW 菜单  "Tools ->Display Resources Manager...“
2. Click "Edit..." in Display Resources Tool Box.
3. Change "Tech Lib Name" to your technology library.
4.select "All LPPs".
4. Search for layer "y0 drawing" and modify the Line Style and click "Apply" at the bottom of "Layers" column.
5. Re-do step 4 to change "y1", "y2" ........ "y9" drawing layers.
6. click "Modify Current Packet" on the rigth-down corner or File->Save in the Display Resource Editor.
7. Load this in your CIW with "drLoadDrf "./display.drf" command
after your pdk display.drf file is loaded.
For standalone ViVA environment variables should be set in the .cdsinit
or .cdsenv files, i.e.
• viva.trace lineStyle string "solid" nil
• viva.trace lineThickness string "thick" nil
A full list can be found in this file $CDSHOME/tools/dfII/etc/tools/viva/.cdsenv

liumingming

http://bbs.eetop.cn/thread-664788-1-1.html  不知道这个对大家有没有用
